EZI GREY FIX
an industrial range, good performance, water resistant, normal cementitious adhesive (C1). Conforming to the requirements of MS ISO 13007-1, classified as type C1.
EZI GREY FIX
Classifcation
C1
Bed Thickness
3-6mm
Usages
Offers the following benefits when mixed with either Clean Water or Latex Admixture:
- Installation of a wide range of ceramic tiles, mosaics tiles and natural stone slabs such as marbles or granites.
- Suitable for use on a variety of substrates.
Key Performance
Good Adhesion Strength
Good Flexural Strength
Good Slip Resistance
High Durability
Non Slump Properities
Good Workability
Water Resistant Properties
Minimal Drying Shrinkage
Product Information
Coverage
Approximate. 6.6m² per 20KG BAG
Approximate. 8.0m² per 25KG BAG
Approximate. 8.0m² per 25KG BAG
Mixing Ratio
Approximate. 1 pbw Water to 3 pbw Powder
Application Area
Wall, Floor, Interior, Exterior, Dry, Wet
Plot Life
Approximate 3-4 hours
Open Time
Approximate 15-20 minutes
Setting Time
Approximate 24-48 hours
Step 1 - Preparing the substrate
- Substrate must be dry, flat and free from contamination, e.g dust, grease, laitance, oil, paint, etc.
Step 2 - Preparing the mix
- Mix adhesive with water or latex admixture until a smooth, non-slump paste is achieved (in accordance to recommended mixture ratio).
- Allow the paste to rest for approximately 10 minitues, then re-stir before using it.
Step 3 - Spreading the mix
- Spread the paste to the substrate at bed thickness of 3-6mm (may vary depending on tile size and weight) with appropriate notched trowel. It also applicable up to 12mm in small isolated areas.
- Spread no more than 1m² at a time to prevent skin-over.
Step 4 - Installing the tile
- Tiles should be fixed dry, they should not be soaked. Recommended to use damp cloth to clean the dusty tile back.
- Tiles should be installed under a firm pressure, and followed by slight twisting action to ensure good coverage and contact of the adhesive (Solid Bed Fixing).
- Tiles must be installed on the fresh adhesive bed with its recommended open time before skin-over of the adhesive occurs.
- Allocate tile joints of approximately 3mm wide between tiles.
- Remove surplus adhesuve from tile surface and joints before it hardens.
- Tiling installed must be protected from water and rain for at least 24 hours.
Highly Recommended - EZI GREY FIX
mix with EziMix STAR AD-1 to achieve optimum performance for installation of low water absorption tiles (≤5%) in very demanding situation (e.g. swimming pools, bathrooms, etc)
Projects Related
TNB HQ Campus @ Bangsar Kuala Lumpur
The campus consists of four office blocks ranging up to ...

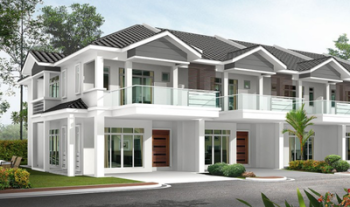

Taman Puteri Emas @ Simpang Ampat Penang
